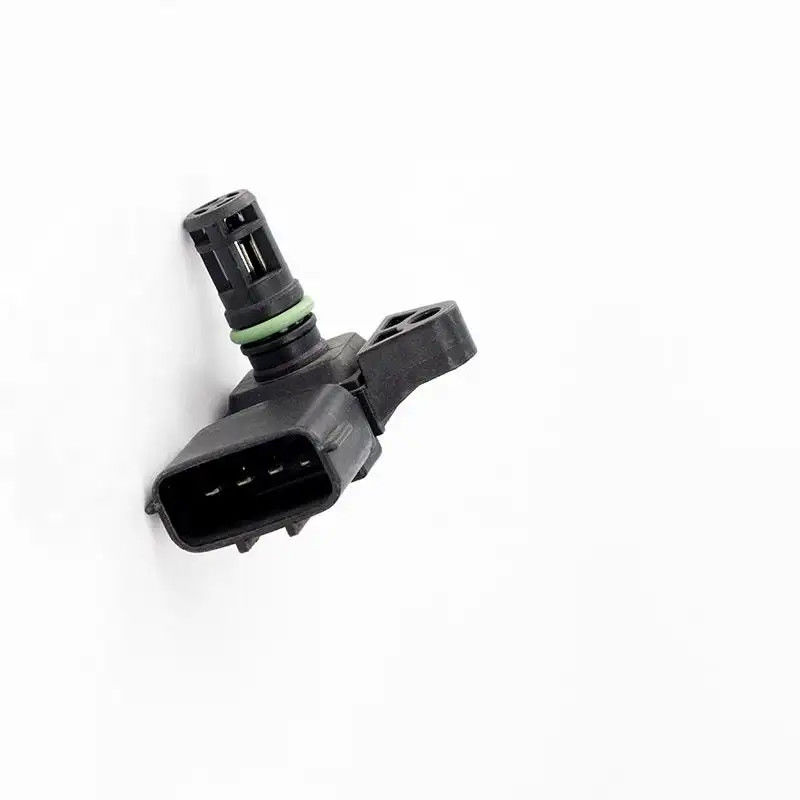

Product Description:
Our MAP pressure sensor is an accurate and reliable inlet air pressure sensor, also known as an intake air pressure sensor or boost pressure sensor. It has an accuracy of ±0.5%FS, a measuring range of 0-1.2MPa, a weight of 120g, a response time of ≤1ms and a cable length of 1m. It is designed to measure air pressure in intake systems and boost systems, and is suitable for a wide range of applications. It is easy to install and provides reliable data in a variety of environments. The MAP pressure sensor is a great choice for accurate and reliable air pressure measurement in any environment.
Features:
- Product Name: MAP Pressure Sensor
- Accuracy: ±0.5%FS
- Weight: 120g
- Compensation Temperature Range: -10℃~60℃
- Temperature Range: -40℃~125℃
- Operating Voltage: 5V
- Boost Pressure Sensor
- Manifold Absolute Pressure Sensor
- Intake Air Pressure Sensor
Technical Parameters:
| Property |
Value |
| Product Name |
MAP Pressure Sensor |
| Vacuum Pressure Sensor/Atmospheric Pressure Sensor/Barometric Pressure Sensor |
Yes |
| Dimensions |
30mm*30mm*50mm |
| Response Time |
≤1ms |
| Warranty |
1 Year |
| Compensation Temperature Range |
-10℃~60℃ |
| Output Signal |
Voltage |
| Temperature Range |
-40℃~125℃ |
| Pressure Connection |
G1/4 |
| Operating Voltage |
5V |
| Weight |
120g |
Applications:
Oetex MAP Pressure Sensor for Automotive Applications
The Oetex MAP Pressure Sensor is designed to provide reliable pressure measurement in automotive applications. With a temperature range of -40℃~125℃ and a housing material of stainless steel, the MAP Pressure Sensor is built for precision and durability. Its dimensions are 30mm*30mm*50mm, and the output signal is voltage.
In addition to being used as a vacuum pressure sensor, the MAP Pressure Sensor can also be used as a differential pressure sensor. The MAP Pressure Sensor is perfect for automotive applications where precision pressure measurement is required. With its temperature range, housing material, dimensions, and voltage output, the Oetex MAP Pressure Sensor is an excellent choice for accurate and reliable pressure measurement.
Customization:
Oetex MAP Pressure Sensor Customized Service
- Brand Name: Oetex
- Compensation Temperature Range: -10℃~60℃
- Housing Material: Stainless Steel
- Cable Length: 1m
- Weight: 120g
- Pressure Connection: G1/4
- Inlet Air Pressure Sensor: Yes
- Barometric Pressure Sensor: Yes
Support and Services:
MAP Pressure Sensor Technical Support and Service
We offer comprehensive technical support and services to ensure that our MAP pressure sensors are performing accurately and efficiently.
- Detailed installation instructions and user manuals
- A variety of technical documents and resources
- 24/7 technical support and troubleshooting via online chat, phone, and email
- Free software updates and bug fixes
- Regular maintenance and calibration services
- Warranty coverage for defects and malfunctions
Packing and Shipping:
Packaging and Shipping of MAP Pressure Sensor
MAP Pressure Sensor is securely packaged for shipping. The pressure sensor is first placed in an ESD bag and then packed in a custom-made box. The box is lined with foam to ensure that the pressure sensor is protected throughout the shipping process. The box is then sealed with tape to further secure the item.
The MAP Pressure Sensor is shipped via a reputable carrier such as UPS, FedEx, or DHL. All orders will be shipped with a tracking number that can be used to track the package online. The customer will receive an email notification when the item is shipped.
