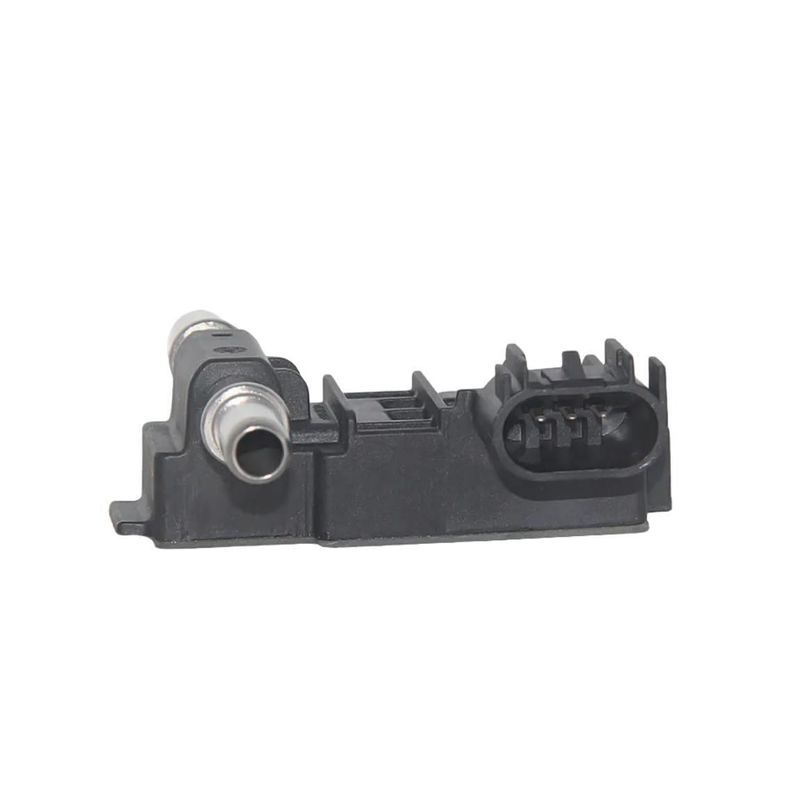

0.45kg 12V Flex Fuel Sensor OEM 13577429 For Chevrolet

Product Description:

The FFS is intended for operation in North American/South American/Southeast Asian countries that use a blend of gasoline and ethanol (anhydrous and/or hydrous ethanol) fuel for vehicle operation. The FFS is a component in the Fuel Storage and Handling Subsystem. The FFS will determine and report the percent total ethanol of the fuel.

Ethanol content is dynamically updated in ECU in order to adapt engine parameters to operate with the new fuel. This will help to avoid potential damages to engine and components due to wrong ethanol content.

Installation at any location on chassis from fuel tank to engine compartment including engine mounting, with environmental temperature restricted to +125°C maximum, -40°C minimum. Sensor must be installed in the low pressure side of the fuel line. Fuel can flow in either direction through the sensor fuel tube (measurement cell). It is also recommended to install the sensor after the fuel filter, to eliminate any larger particles in the fuel from plugging the sensor.

If sensor is installed in return fuel line, customers should consider draining of line when vehicle is turned off, which will result in a delay in correct signal output until fuel has reached sensor. Depending on available free space to install the sensor, Bometec has learned from other customers the following: Sensor horizontal installation, whereby some customers are mounting sensor at slight angle, to avoid entrapped air in the pipe. Alternatively, customers can choose to use the sensor vertical installation, but then they should take into consideration that fuel volume vs temperature change will change the fuel head pressure, which affects output signal.

Features:

• Product Name: Flex Fuel Sensor
• Size: 2.5in X 2.5in X 1.5in
• Accuracy: ±0.1%
• Humidity Range: 0-100%RH
• Pressure Range: 0-100psi
• Flexible Fuel Monitoring Solution
• Highly Accurate Flexible Fuel Sensor

Technical Parameters:

Applications:

The Oetex FFS-001 Flex Fuel Sensor is a fuel flexibility sensor that measures and monitors fuel composition in a variety of applications. Its 2.5in X 2.5in X 1.5in size and 0.45kg weight make it an ideal solution for tight spaces and portable applications. Its stainless steel material and storage temperature range of -40℃~+125℃ make it a reliable and durable fuel monitoring device.

The Oetex FFS-001 Flex Fuel Sensor is a great choice for automotive, marine, and construction industries. It can be used to detect and measure the composition of fuel in a variety of applications, such as fuel injection systems, engines, and fuel tanks. It also provides real-time data on fuel composition, so operators can make informed decisions in order to maximize fuel efficiency and reduce emissions.

The Oetex FFS-001 Flex Fuel Sensor provides an accurate and reliable monitoring solution for any fuel flexibility application. Its stainless steel construction and wide temperature range make it a durable and reliable device that can be used in a variety of applications. With its small size and lightweight design, it is an ideal choice for tight spaces and portable applications. The Oetex FFS-001 Flex Fuel Sensor is the perfect solution for any fuel flexibility application.

Customization:

The Oetex Flexible Fuel Sensor is a fuel flexibility measurement device designed to detect fuel variations. It offers a reliable and accurate 0.5A current, an operating temperature of -40℃~+125℃, a weight of 0.45kg, a humidity range of 0-100%RH, and a voltage of 12V.

This flexible fuel detection system is perfect for measuring fuel variability and provides the most accurate results in a wide range of applications. It is the ideal solution for monitoring the fuel composition of any vehicle. With its flexible design and advanced features, the Oetex Flexible Fuel Sensor is the best choice for any fuel flexibility measurement requirement.

Support and Services:

Flex fuel sensor provides technical support and service to ensure customers have the best possible experience with their products. Our technical support team is available during regular business hours to answer your questions and help you troubleshoot any issues you may have. We also offer a comprehensive warranty with our products, so you can rest assured that your purchase is protected. Additionally, we offer a wide range of online tutorials to help you get the most out of your flex fuel sensor.

Packing and Shipping:

The Flex Fuel Sensor will be packaged in a cardboard box for shipping. The box dimensions will be 15" x 10" x 8". It will include a foam insert to protect the sensor during transit. The weight of the box will be less than 5 lbs.

The Flex Fuel Sensor will be shipped via USPS, UPS, or FedEx. All orders will be shipped with tracking numbers. Delivery times may vary depending on the delivery location.

FAQ:

Q: What is the brand name of the flex fuel sensor?

A: The brand name of the flex fuel sensor is Oetex.

Q: How does the flex fuel sensor measure the amount of ethanol in the fuel?

A: The flex fuel sensor measures the amount of ethanol in the fuel by measuring the dielectric constant of the fuel.

Q: What is the operating temperature range for the flex fuel sensor?

A: The operating temperature range for the flex fuel sensor is -40°C to +105°C.

Q: What is the accuracy of the flex fuel sensor?

A: The accuracy of the flex fuel sensor is +/- 2%.

Q: What type of fuel can the flex fuel sensor support?

A: The flex fuel sensor can support gasoline, E10, E15, E85 and B100.
