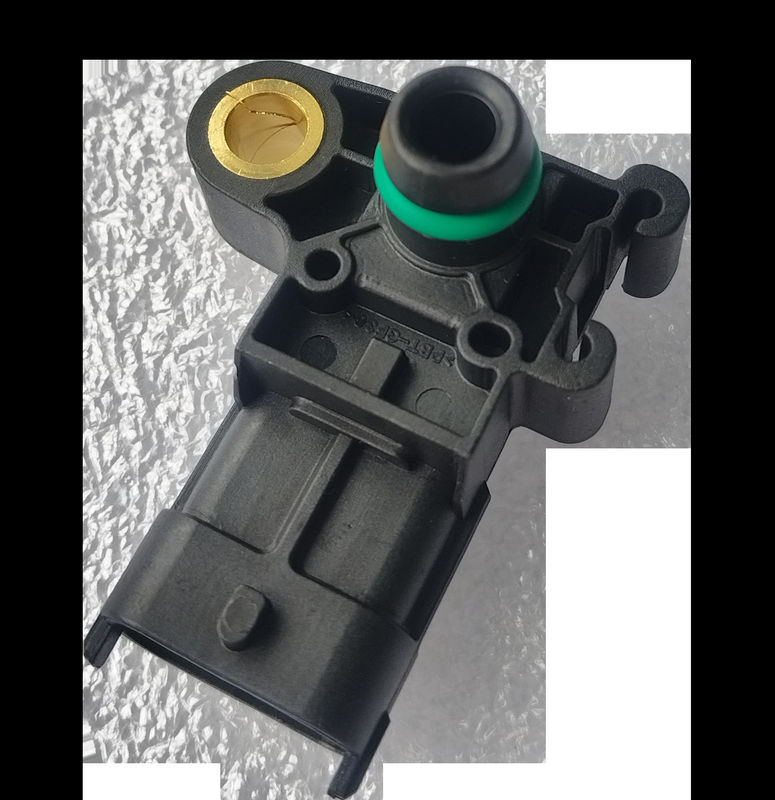

5V Automotive 5 Bar MAP Sensor 2ms Response Time 20g Weight

Product Description:

A Manifold Absolute Pressure (MAP) Sensor is an important component of a vehicle's engine management system. It is usually located in the inlet manifold, either next to or on the throttle body. The MAP sensor's job is to measure the intake manifold pressure, and supply such data to the Engine Control Unit (ECU).

The ECU then uses the MAP sensor readings to calculate air density, and determine the air-fuel mixture for the combustion process. Other uses of the MAP sensor include diagnosing throttle performance issues, checking for a vacuum leak in the intake manifold, and converting the MAP sensor signal into air mass data with the help of engine speed and Intake Air Temperature (IAT) sensor data. The MAP sensor is also used to test if the Exhaust Gas Recirculation (EGR) valve is working properly, either in vehicles with a Mass Air Flow (MAF) Sensor or as a backup measure.

The failure of a Manifold Absolute Pressure Sensor may be attributed to a variety of causes such as contamination, clogging, vibration damage, and electronic malfunction due to intense engine heat. The symptoms of a malfunctioning Pressure Sensor may include engine not starting or starting poorly, detonation or misfire, excessive fuel consumption, as well as a decrease in engine power. The car's Check Engine Light may also be triggered by a faulty Pressure Sensor.

Technical Parameters:

Applications:

The Oetex MAP Sensor is an essential component for automotive engine management systems, providing accurate measurement of manifold air pressure for the Engine Control Unit (ECU). With a robust ISO9001 certification, the MAP Sensor is designed to withstand a wide range of operating temperatures from -40 to 125°C, and is powered with a 5 V supply. The sensor offers an output signal of 0.5 to 4.5 V, and is highly compact with dimensions of 30 X 18 X 10 mm. XYZ is the manufacturer of this MAP Sensor which is widely used for engine management and control.

The Oetex MAP Sensor is designed for optimal performance and reliability in modern automotive engine management systems. This sensor accurately measures the manifold air pressure in the engine and provides essential feedback to the ECU. With a low power supply requirement of 5 V and an output signal range of 0.5 to 4.5 V, the MAP Sensor is a reliable and efficient solution for engine management and control. The robust ISO9001 certification ensures the sensor is of the highest quality and performance, while the compact design of 30 X 18 X 10 mm allows for easy installation.

The Oetex MAP Sensor is the ideal engine management and control solution for automotive applications. With a wide operating temperature range from -40 to 125°C, this sensor is designed to meet the needs of a variety of environments. The sensor is powered with a 5 V supply and provides an output signal of 0.5 to 4.5 V, making it highly reliable and efficient. Manufactured by XYZ and certified with ISO9001, this MAP Sensor is a cost-effective and reliable solution for engine management and control.

Customization:

• Brand Name: Oetex
• Certification: ISO9001
• Response Time: 2 Ms
• Operating Temperature: -40 To 125°C
• Dimensions: 30 X 18 X 10 Mm
• Weight: 20 G
• Output Signal: 0.5-4.5 V
• Product Description: Oetex Automotive MAP Sensor, also known as Manifold Air Pressure Sensor, Intake Manifold Pressure Sensor, and Automotive Boost Pressure Sensor.

Support and Services:

We provide technical support and service for automotive MAP sensors. Our services include:

• On-site installation and maintenance
• Troubleshooting and repairing MAP sensor issues
• Replacement of faulty MAP sensors
• Advice and assistance with selecting the right MAP sensor for your vehicle

If you have any questions or require assistance, please contact us.

Packing and Shipping:

Automotive MAP sensors are securely packaged to ensure safe delivery. The packaging includes a strong box and bubble wrap to protect the sensor from moisture, dust, and any other external damage.

For shipping, the automotive MAP sensor is shipped through a secure and reliable delivery service. Tracking numbers will be provided to customers upon request.

FAQ:

Q1: What is Oetex Automotive MAP Sensor?

A1: Oetex Automotive MAP Sensor is an electronic device that measures absolute air pressure in an internal combustion engine, thereby allowing the engine control unit (ECU) to determine the air density and the engine load. It is certified to ISO9001 standards.

Q2: What are the benefits of using an Oetex Automotive MAP Sensor?

A2: Oetex Automotive MAP Sensors can improve fuel economy, reduce emissions, and improve engine performance. They also help to reduce the risk of engine damage due to incorrect air/fuel ratio.

Q3: How do I install an Oetex Automotive MAP Sensor?

A3: Installing an Oetex Automotive MAP Sensor is relatively straightforward. You need to locate the MAP sensor port on your engine, disconnect the existing MAP sensor, connect the Oetex Automotive MAP Sensor to the port, and secure the sensor in place.

Q4: How do I know if my Oetex Automotive MAP Sensor is working correctly?

A4: You can check the performance of your Oetex Automotive MAP Sensor by monitoring the air/fuel ratio and the engine performance. If the air/fuel ratio is inaccurate or the engine performance is affected, the MAP sensor may need to be replaced.

Q5: How often should I replace my Oetex Automotive MAP Sensor?

A5: The Oetex Automotive MAP Sensor should be replaced every 30,000 to 40,000 miles or as recommended by your vehicle's manufacturer. If the sensor is not replaced at regular intervals, it may lead to inaccurate readings and engine damage.
